EQTouch High-end Ultrasound Platform
Deep integration of industry, academia, research and medicine

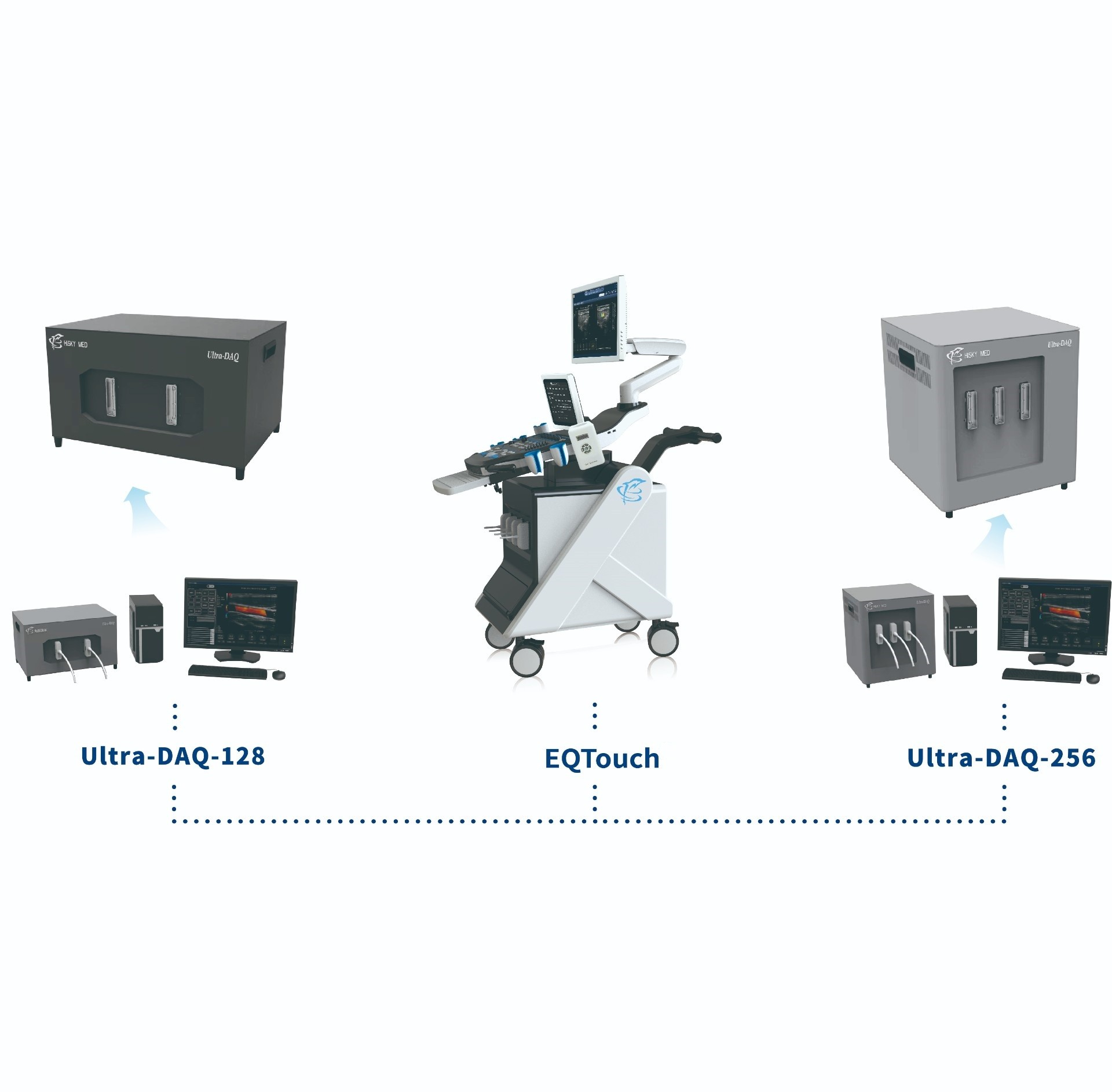

With 128-1024 parallel physical channels, it flexibly constructs a multi-scenario
platform system and supports multi-disciplinary applications.
platform system and supports multi-disciplinary applications.
High-speed imaging at 50,000 frames per second, lossless storage
full-channel RF data to facilitate scientific data analysis.
full-channel RF data to facilitate scientific data analysis.
Multi-modal functional support
Scientific research in multiple fields
Scientific research in multiple fields
• Continuous observation time: The 128-channel configuration comes with a 32G raw data space.
• Raw channel radio frequency data collection
• Number of channels: Standard configuration is 128/256 (expandable).
• External trigger control supported
• Sampling frequency: 40MHZ
• Imaging depth adjustable
• Frame rate: Supports a high frame rate of ultrasonic imaging at more than 50,000 frames per second.
RF data
The "genes" of ultrasonic signals can obtain corresponding signals that reflect the changes in the microstructure of tissues, and provide characterization parameters that reflect the degree of inflammation, the nature of tumors, and so on.
Ultra-micro blood flow data acquisition
It can visualize capillaries at the 10-micron level, initiate a new era of micro-blood flow imaging, and provide quantitative information about tissue microcirculation.
Viscoelasticity
Through the analysis of the dispersion curve, the viscosity of the tissue is evaluated, and quantitative research on the degree of tissue inflammation and the condition of edema is supported.
Product parameters
• Sampling: 40 MHZ/14BIT
• Transmitting frequency: 10KHZ - 80MHZ
• Delay precision: 6.25NS
• Impedance range: 25 - 1500Ω (Note: In the original you wrote "25-1500Q", it should be the unit of impedance "Ω" (ohm))
• Data storage space: 64G
• TRIGGER IN/OUT
• Channel data storage
• Toolkit: Customized filter
• Digital TGC (Time Gain Compensation)
• Real-time display of channel data
Control parameters
• Acquisition frame rate (PRF)
• Imaging depth
• Number of stored frames
• Other adjustable parameters: center frequency, deflection angle (delay), number of deflection angles, pulse length, etc.
For Research Use Only
If you need more product information, please contact us.
